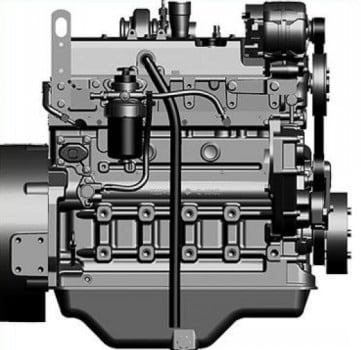

John Deere PowerTech 2.4L and 3.0L Diesel Engine Component Technical Manual CTM301

John Deere component technical manual CTM301 for the PowerTech 2.4 litre (4024) and 3.0 litre (5030) diesel engines. It is the engine repair book a John Deere dealer technician would use.

These engines sit in a lot of machines. The manual itself lists the 4120, 4320, 4520 and 4720 compact tractors, the 5225 and 5325 tractors, the 244J and 304J loaders, and the 317, 320, 325, 328 and 332 skid steers, plus OEM industrial engines like the 4024TF270 and 5030TF270.

Compatibility and quick facts

• Make: John Deere
• Models: 4024, 5030 (PowerTech 2.4L and 3.0L)
• Book code: CTM301
• Engine families: 4024 (2.4L, 4 cyl.) and 5030 (3.0L, 5 cyl.)
• Examples: PE4024TLV, PE4024TT, PE5030TT, 4024TF270, 5030TF270, 5030HF270
• Machines named: 4120, 4320, 4520, 4720, 5225, 5325, 244J, 304J, 317, 320, 325, 328, 332
• Edition: 22 Sep 2005
• Manual type: Component technical manual (engine repair)
• Language: English
• Length: 420 pages
• Format: PDF, download link right after checkout

What is inside

• Engine identification and application charts
• Cylinder head, valves and camshaft
• Cylinder block, pistons, liners and crankshaft
• Lubrication and cooling systems
• Air intake, turbocharger and exhaust
• Fuel system and injection pump
• Operation and tests: diagnosis of common faults, performance checks
• Rated power and turbo boost figures per machine
• Specs, wear limits and torque values at the start of each group

Good to know before you buy

It covers the engine only. For the rest of the machine you need the machine technical manual.

Starter and alternator repair are in CTM77, and OEM engine accessories in CTM67. Those are separate books.

Common questions

Will this cover the engine in my 4320 tractor?
Yes. The 4320 uses the PE4024TLV01, which is listed in this manual.

Is there a parts list in it?
No. It is a repair and test manual, not a parts catalog.
