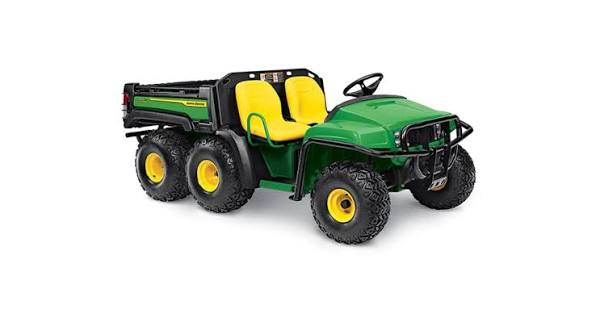

John Deere 4x2, 6x4 Gas and Diesel Gator Parts Catalog PC2387 (1993-2006)

John Deere parts catalog PC2387 for the original 4x2 and 6x4 Gator utility vehicles, gas and diesel. It also covers the Worksite, Trail and Trail Camo Edition Gators.

The book covers model years 1993 to 2006 and gives the serial number range for each year. That makes it easy to confirm you are looking at the right parts page for your Gator.

Compatibility and quick facts

• Make: John Deere
• Models: 4x2 Gator, 6x4 Gator, 6x4 Diesel Gator, Worksite Gator, Trail Gator, Trail Gator Camo
• Book code: PC2387
• Model years: 1993 to 2006
• Example serial ranges: 4x2: W004X2X015178-020969 is 1996. 6x4 diesel: W006X4D001001 and up
• Versions: Standard, export, homologated, Trail and Virginia-built units
• Edition: Oct 2008 revision
• Manual type: Parts catalog
• Language: English
• Length: 340 pages
• Format: PDF, download link right after checkout

What is inside

• Serial number breaks by model year for every version
• Exploded drawings with part numbers and quantities
• Engine, fuel system, air intake and exhaust
• Transaxle, drive belt and clutches
• Steering, brakes, suspension and wheels
• Cargo box, frame, seats and body panels
• Electrical parts and accessories

Good to know before you buy

This is a parts catalog. It shows part numbers and how parts fit together, but no repair steps or specs. Pair it with the Gator technical manual if you are doing the work yourself.

Common questions

Does it cover my 2004 6x4 diesel?
Yes. 6x4 diesel Gators are listed by year from 1997 to 2006 with serial ranges.

Does it cover the XUV or HPX Gators?
No. Those are later models with their own catalogs.
